Applications & Libraries
C++ has always been there

One source of truth

Same algorithm

Same bugs

Better maintenance

Not always possible

Different programming languages

Domain knowledge

Big problems, big solutions

Cross-platform languages

Microservices

Miss the monolith

AI: Simulation and modelling

Randomness , reproducibility , performance

Models are not easy

Neither random generators

Neither random generators

Algorithm implementation

Distribution sampling

Floting point representation

Reproducibility across different languages, compilers, runtimes...

Love the monolith

Reuse the same binary

samples ~lognormal( , )

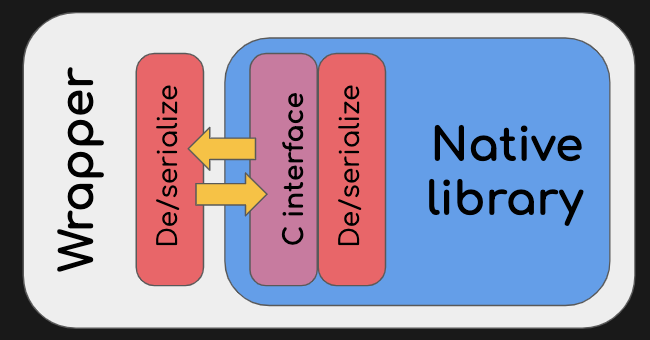

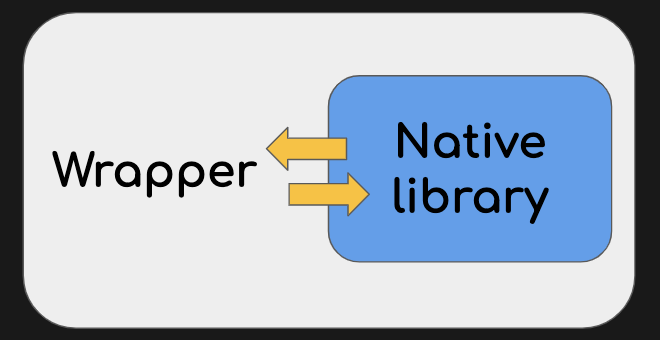

Building blocks

Native library

Wrapper for every language

Data interchange layer

Application

Application

Data interchange layer

Protocol buffers

Data layer | Request samples

						message Model {  // Random model generator
						    enum Name {
						        BERNOULLI = 0;
						        GEOMETRICAL = 5;
						        POISSON = 6;
						        EXPONENTIAL = 9;
						        BINOMIAL_NEGATIVE = 10;
						        LOGNORMAL = 11;
						    }
						    Name id = 1;
						    map< string, float> params = 2;
						}


						message SampleRequest {  // Message to request samples
						    Model model = 1;
						    float seed = 2;
						    uint32 n_samples = 3;
						}


Data layer | Samples returned

						message Sample {  // Message to return generated samples
						    Model model = 1;
						    float seed = 2;
						    repeated float samples = 3;
						}


Native library | C-interface

						#ifdef __cplusplus
						extern "C" {
						#endif
						    typedef void (*callback_t)(void* context,
						                               const void* data,
						                               const void* status);

						    CRND_EXPORT void help(void* context,
						                          callback_t help_callback);
						    CRND_EXPORT void sample(void* context,
						                            const void* sample_request,
						                            callback_t sample_callback);
						#ifdef __cplusplus
						}
						#endif


Native library | C-interface | Sample function

						typedef void (*callback_t)(void* context,
						                           const void* data,
						                           const void* status);

						void sample(void* context,
						            const void* sample_request,
						            callback_t sample_callback);


Native library | C-interface | Sample function

						void sample(void* context, const void* sample_request,
						            callback_t sample_callback) {
						    SPDLOG_DEBUG("> C::sample");

						    SampleRequest request =
						        Serialized< SampleRequest>::parse(sample_request);
						    Sample sample_message;
						    auto status = sample(request, sample_message);

						    SPDLOG_TRACE("C::sample::before callback");
						    sample_callback(context,
						                    Serialized< crnd::Sample>(sample_message),
						                    Serialized< crnd::Status>(*status));
						    SPDLOG_TRACE("C::sample::after callback");

						    SPDLOG_DEBUG("< C::sample");
						}


sample_request >> (sample) >> sample_message

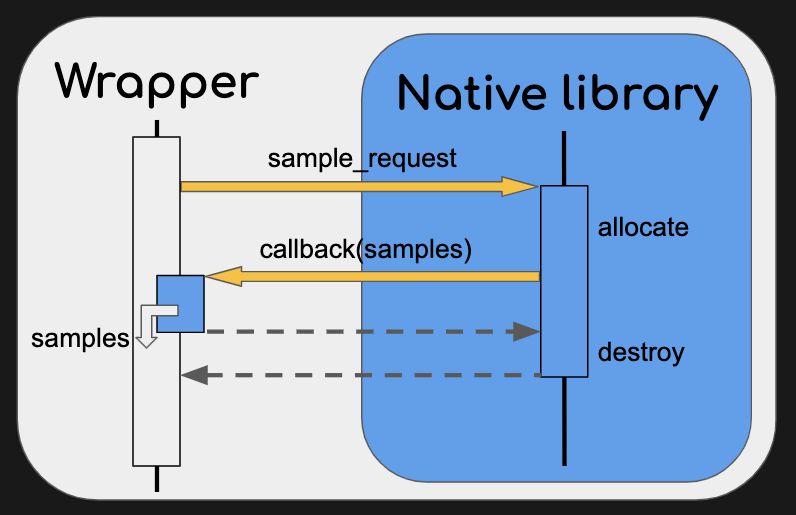

Native library | C-interface | Callback

Wrapper for Python

						import ctypes
						from messages import status_pb2, sample_request_pb2, sample_pb2, model_pb2

						class CRND:
						    def __init__(self, path_to_library):
						        self.dll = ctypes.cdll.LoadLibrary(path_to_library)

						    def lognormal(self, seed, samples, mu, sigma):
						        model = model_pb2.Model()
						        model.id = model_pb2.Model.LOGNORMAL
						        model.params["mu"] = mu
						        model.params["sigma"] = sigma
						        return self._sample(seed, samples, model)

						    def _sample(self, seed, samples, model):
						        request = sample_request_pb2.SampleRequest()
						        request.seed = seed
						        request.n_samples = samples
						        request.model.CopyFrom(model)

						        serialized = ProtoSerialized.build_from(request)
						        sample, status = _call(self.dll.sample,
						                               sample_pb2.Sample,
						                               serialized.as_ref())

						        if not status.ok:
						            raise Exception(status.error_message)

						        return sample.samples


Wrapper for Python

						import ctypes
						from messages import status_pb2, sample_request_pb2, sample_pb2, model_pb2

						class CRND:
						    def __init__(self, path_to_library):
						        self.dll = ctypes.cdll.LoadLibrary(path_to_library)

						    def lognormal(self, seed, samples, mu, sigma):
						        model = model_pb2.Model()
						        model.id = model_pb2.Model.LOGNORMAL
						        model.params["mu"] = mu
						        model.params["sigma"] = sigma
						        return self._sample(seed, samples, model)

						    def _sample(self, seed, samples, model):
						        request = sample_request_pb2.SampleRequest()
						        request.seed = seed
						        request.n_samples = samples
						        request.model.CopyFrom(model)

						        serialized = ProtoSerialized.build_from(request)
						        sample, status = _call(self.dll.sample,
						                               sample_pb2.Sample,
						                               serialized.as_ref())

						        if not status.ok:
						            raise Exception(status.error_message)

						        return sample.samples


Wrapper for Python

						import ctypes
						from messages import status_pb2, sample_request_pb2, sample_pb2, model_pb2

						class CRND:
						    def __init__(self, path_to_library):
						        self.dll = ctypes.cdll.LoadLibrary(path_to_library)

						    def lognormal(self, seed, samples, mu, sigma):
						        model = model_pb2.Model()
						        model.id = model_pb2.Model.LOGNORMAL
						        model.params["mu"] = mu
						        model.params["sigma"] = sigma
						        return self._sample(seed, samples, model)

						    def _sample(self, seed, samples, model):
						        request = sample_request_pb2.SampleRequest()
						        request.seed = seed
						        request.n_samples = samples
						        request.model.CopyFrom(model)

						        serialized = ProtoSerialized.build_from(request)
						        sample, status = _call(self.dll.sample,
						                               sample_pb2.Sample,
						                               serialized.as_ref())

						        if not status.ok:
						            raise Exception(status.error_message)

						        return sample.samples


Wrapper for Python

						def _call(func, response_class, sample_request):
						    @ctypes.CFUNCTYPE(None, ctypes.c_void_p, ctypes.POINTER(ProtoSerialized), ctypes.POINTER(ProtoSerialized))
						    def cb(_, data_in, status_in):
						        cb.status = status_in.contents.parse_as(Status)
						        if cb.status.ok:
						            cb.data = data_in.contents.parse_as(response_class)

						    func(None, sample_request, cb)  # No need to pass context

						    if cb.status.ok:
						        return cb.data, cb.status
						    else:
						        return None, cb.status


Wrapper for Python

						def _call(func, response_class, sample_request):
						    @ctypes.CFUNCTYPE(None, ctypes.c_void_p, ctypes.POINTER(ProtoSerialized), ctypes.POINTER(ProtoSerialized))
						    def cb(_, data_in, status_in):
						        cb.status = status_in.contents.parse_as(Status)
						        if cb.status.ok:
						            cb.data = data_in.contents.parse_as(response_class)

						    func(None, sample_request, cb)  # No need to pass context

						    if cb.status.ok:
						        return cb.data, cb.status
						    else:
						        return None, cb.status


Wrapper for Python

						def _call(func, response_class, sample_request):
						    @ctypes.CFUNCTYPE(None, ctypes.c_void_p, ctypes.POINTER(ProtoSerialized), ctypes.POINTER(ProtoSerialized))
						    def cb(_, data_in, status_in):
						        cb.status = status_in.contents.parse_as(Status)
						        if cb.status.ok:
						            cb.data = data_in.contents.parse_as(response_class)

						    func(None, sample_request, cb)  # No need to pass context

						    if cb.status.ok:
						        return cb.data, cb.status
						    else:
						        return None, cb.status


Try it yourself

    jgsogo/cpp-inside

Love the monolith

• Solid, simpler, faster
• Easy to test
• Consistent deploy
• No extra complexity

Why C++ inside?

• Compile to native library (easy C-interface)
• Easy and powerful language
• Ecosystem is improving quickly ( Conan.io)
• Worldwide community (Madrid C/C++ User Group)

@madridccppug
